Vehicle tracking and locking system based on GSM and GPS Circuit Diagram This project implements a Vehicle Tracking System using Arduino along with GPS and GSM modules. It allows tracking the vehicle's real-time location and sends this data to a web server for monitoring purposes. This system can be used for fleet management, theft prevention, or simply monitoring vehicle movement.

Vehicle tracking and locking system based on GSM and GPS Circuit Diagram

Arduino retrieves a vehicle's current location using the GPS module. The board stores the latitude and longitude of the current location and transmits them to the ThingSpeak server using the GSM network via the SIM900A modem. The modem generates an HTTP post for the address of the ThingSpeak server to transmit the vehicle's location data. The Board has a 32-bit ATSAMD21 controller from Atmel which can be programmed using Arduino IDE. You can also make this project using Neo-6M GPS Module & SIM 800/900 GSM Module with Arduino UNO Board. But this will make the device size large. We will discuss in detail about this Arduino GPS & GSM Based Vehicle Tracking System.

Vehicle Tracking System Based on GPS and GSM Circuit Diagram

Vehicle Tracking System Based on GPS and GSM Circuit Diagram

After reading this string using Arduino extract the required data from string and then sends it to mobile phone using GSM module via SMS. This information is called latitude and longitude. GPS used 3 or 4 satellite for tracking the location of any vehicle. Fig. 2: Prototype of Arduino based Vehicle Tracking System

Vehicle Tracking System Based on GPS and GSM Circuit Diagram

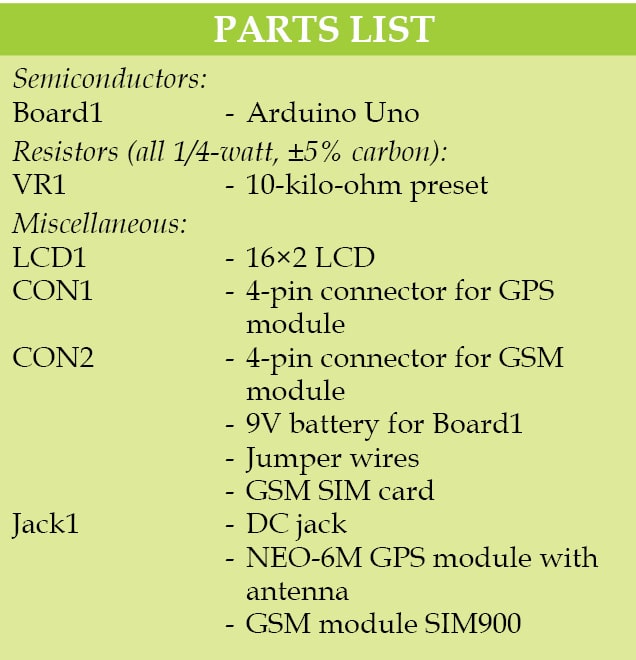

The system can be installed or hidden in your vehicle at a suitable location. After installing this circuit, you can easily track your stolen vehicle using a mobile phone. The author's prototype is shown in Fig. 1. Fig. 1: Author's prototype Circuit and working. Circuit diagram of the GPS- and GSM-based vehicle tracking system is shown in

GPS and GSM Based Vehicle Tracking System Circuit Diagram

time vehicle tracking system Circuit Diagram

Step 5: Type "TRACK VEHICLE" to the Sim on the Sim Module. Switch ON the hardware. Download the code. check the Network range on the GSM module with the blinking of the network led. Type "TRACK VEHICLE" as SMS and send to the sim module in the GSM Modem. Step 6: You Can Receive the Response SMS From GSM Module

GPS + GSM Based Advanced Vehicle Tracking System Project Circuit Diagram
